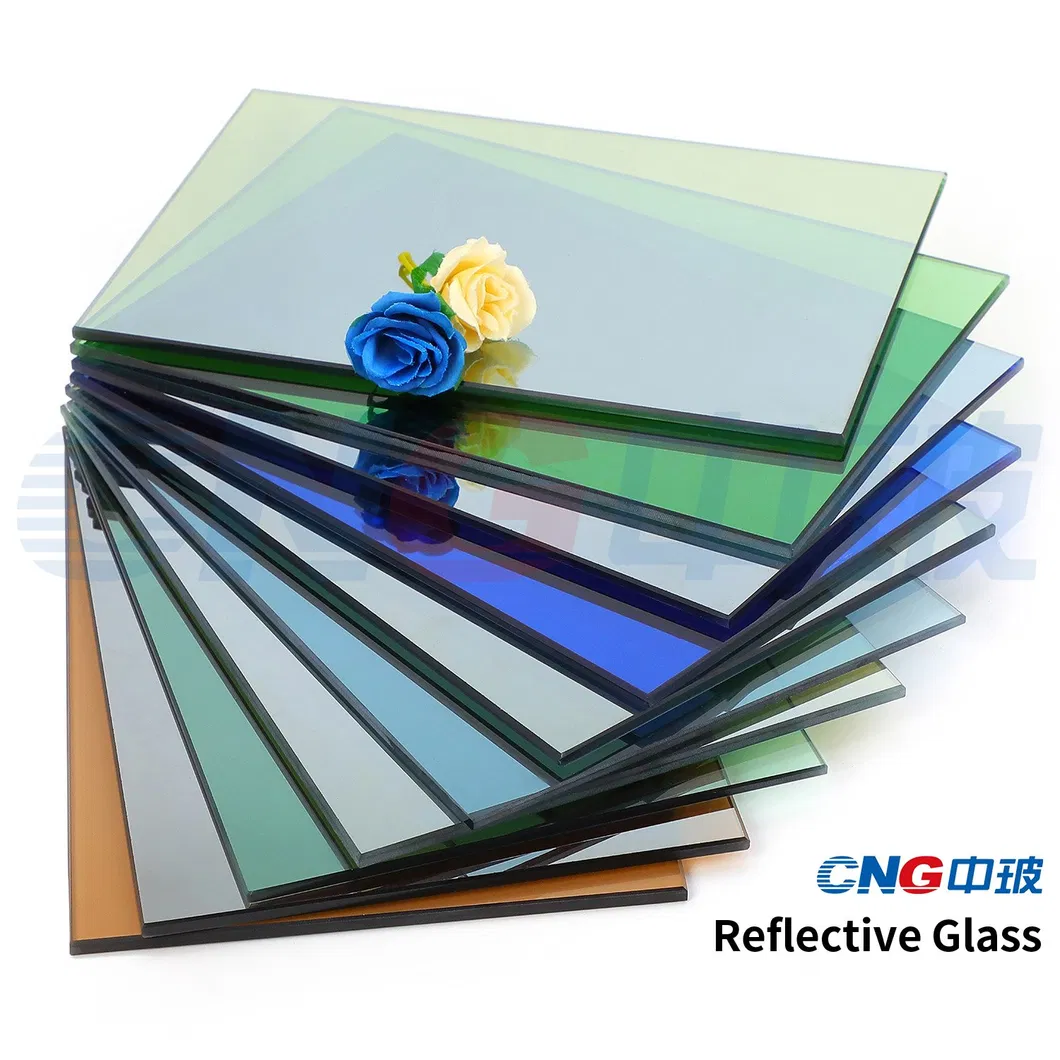

⭐ CNG Glass is ordinary float glass with a metallic coating which is fused to the glass at 1200ºC. The special metallic coating also provides a one-way mirror effect, preventing visibility from the outside and thus preserving privacy of the building.
⭐ On-line Reflective Glass is processed using chemical vapor deposition technology (CVD) with metallic coating applied during float glass manufacture. It can be easily cut, heat strengthened or toughened.
⭐ Off-line reflective Glass is produced by the magnetron sputtered vacuum deposition technique (MSVD) in vacuum chambers with a homogeneous film metal compound directly on float glass.
| No. | Product Name | Trans. | UV Trans. | Visible Light Trans. | Visible Light Ref. | Sunlight Trans. | Sunlight Ref. | Solar Energy Trans. | SC | SHGC |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 5mm Bluestar Grey | VT-25% | 4.68% | 24.93% | 17.13% | 32.67% | 15.22% | 45.24% | 0.51 | 0.482 |
| 2 | 6mm Bluestar Grey | VT-20% | 3.50% | 20.82% | 14.09% | 27.39% | 12.71% | 41.83% | 0.47 | 0.455 |
| 4 | 4mm Ford Blue | VT-33% | 7.81% | 32.70% | 38.60% | 42.20% | 26.20% | 50.60% | 0.582 | 0.506 |
| 8 | 5mm Dark Green | VT-28% | 4.36% | 27.31% | 26.52% | 28.14% | 16.63% | 41.46% | 0.47 | 0.446 |
| 10 | 5mm Clear Low-E | VT-80% | 39.94% | 80.17% | 10.45% | 68.81% | 10.15% | 72.32% | 0.81 | 0.723 |

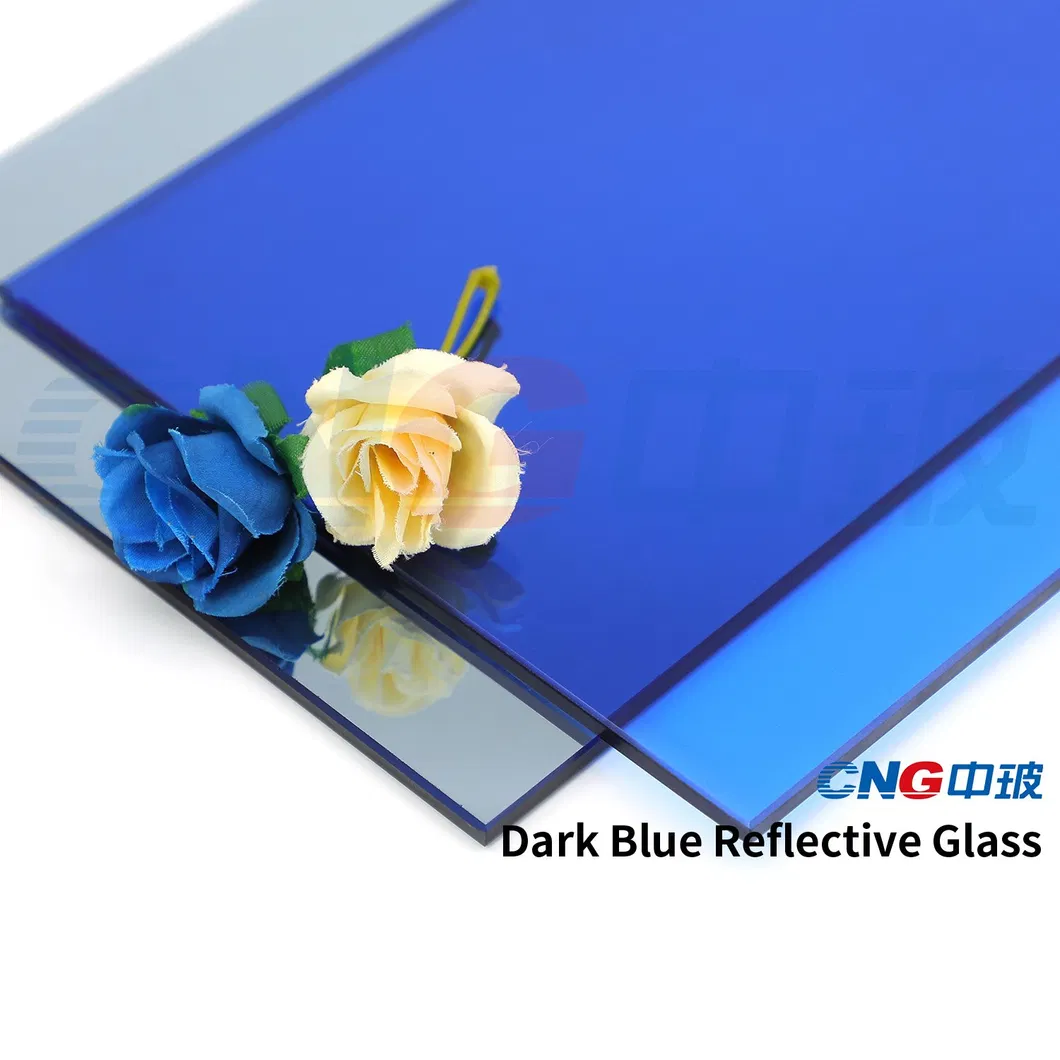

| 12 | 5mm Dark Blue | VT-20% | 12.07% | 23.35% | 13.46% | 43.49% | 18.44% | 52.68% | 0.59 | 0.546 |
| 21 | 5mm Clear | VT-55% | 13.87% | 50.58% | 34.10% | 58.00% | 25.85% | 61.89% | 0.7 | 0.625 |
