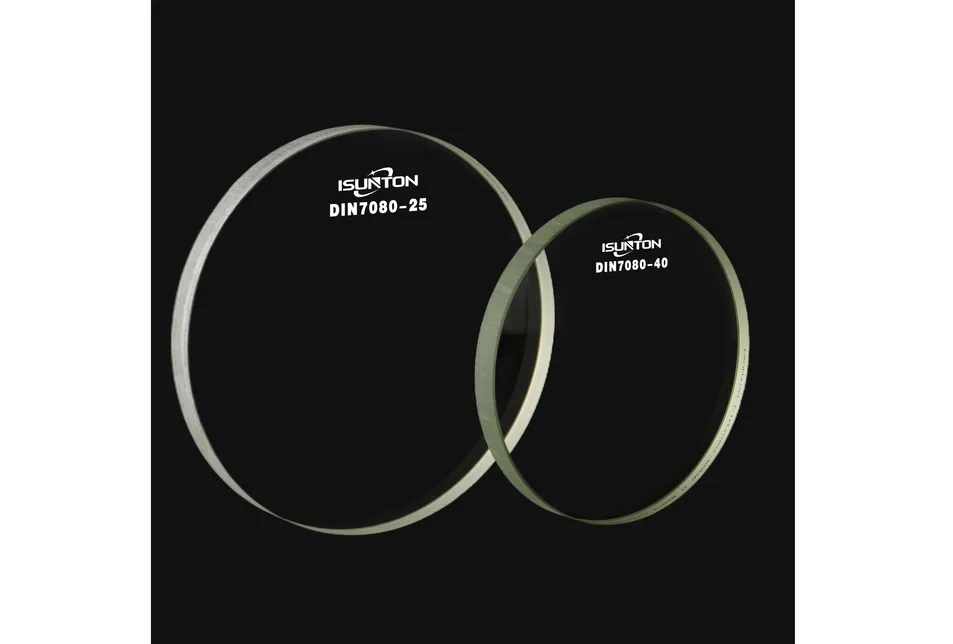

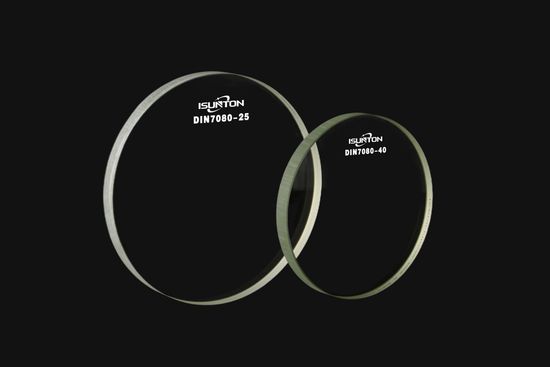

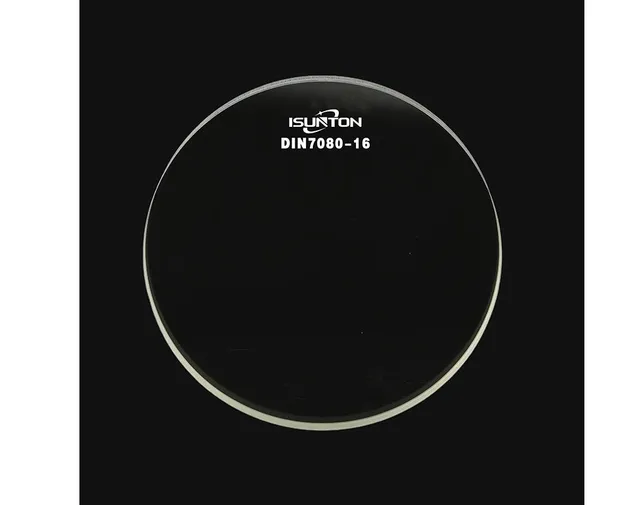

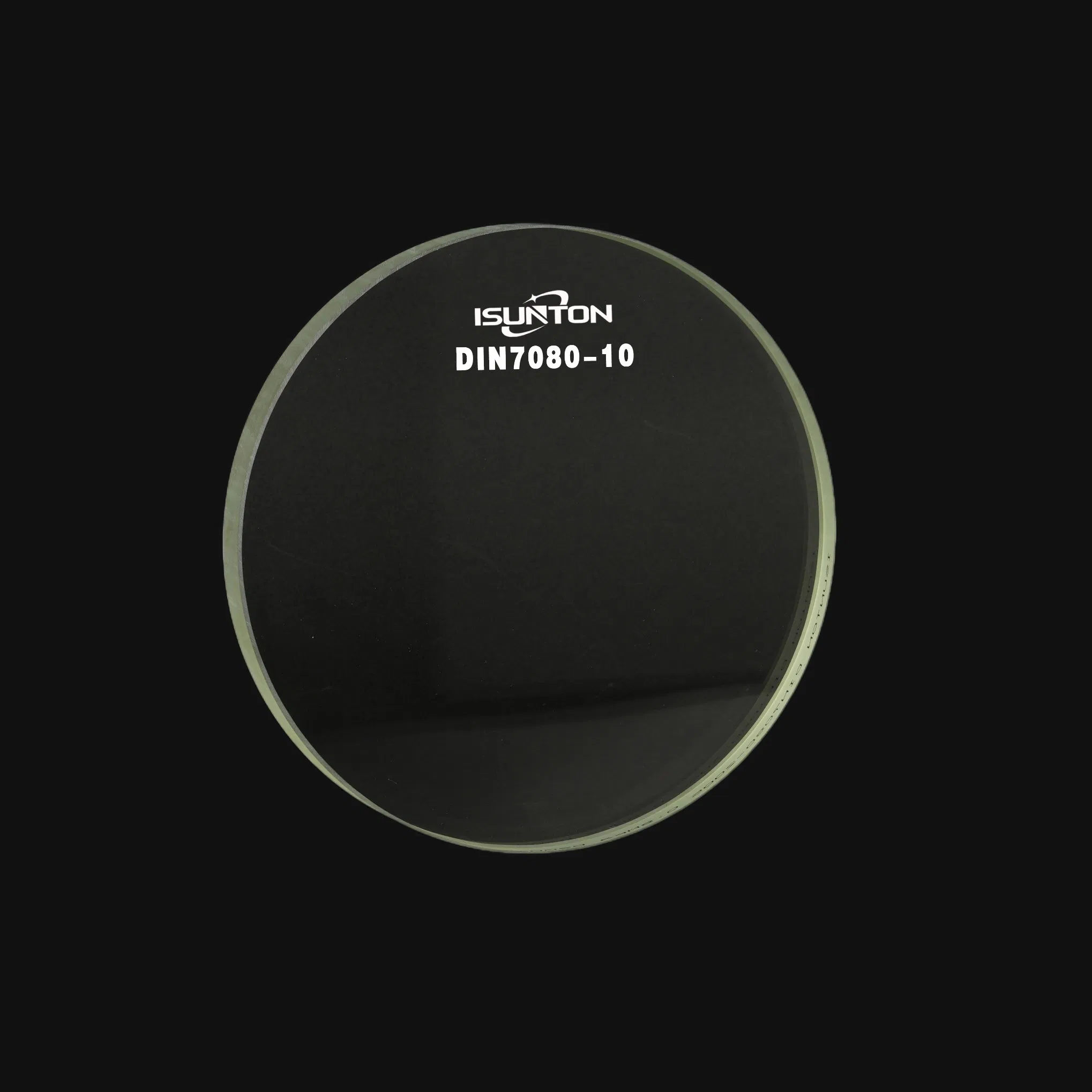

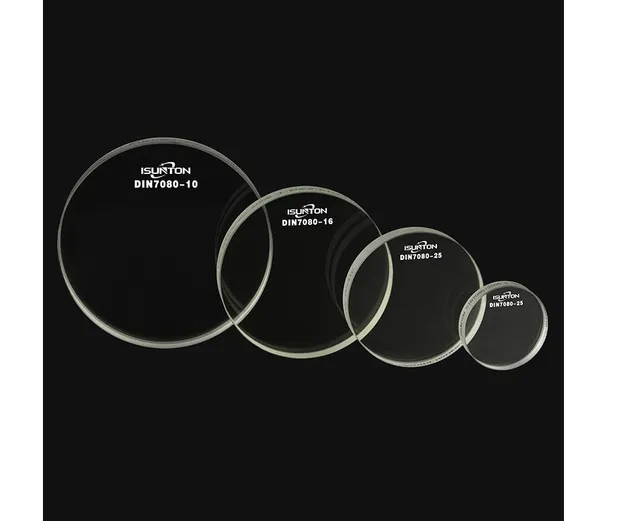

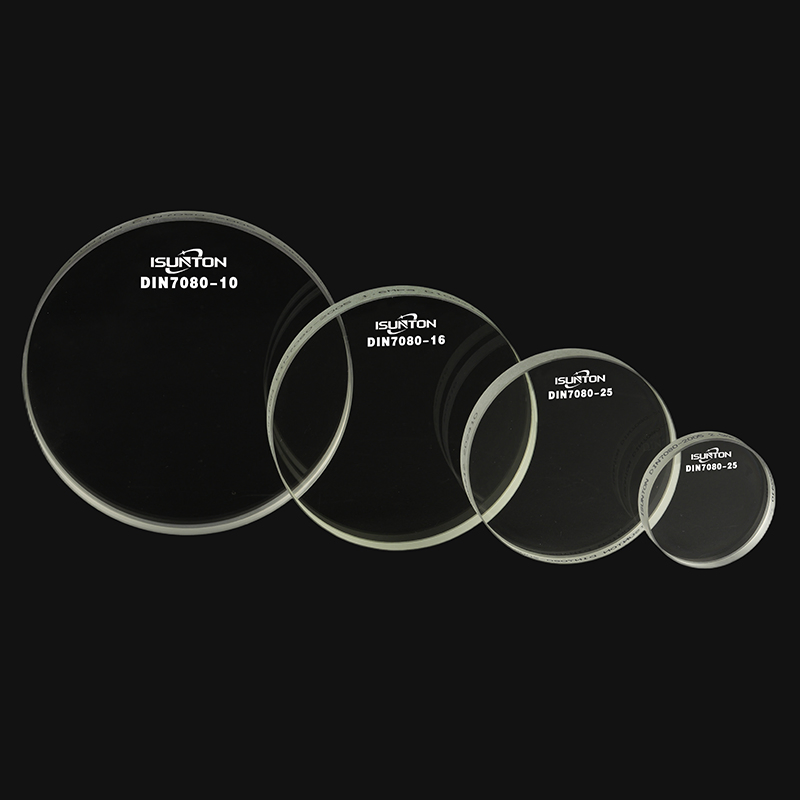

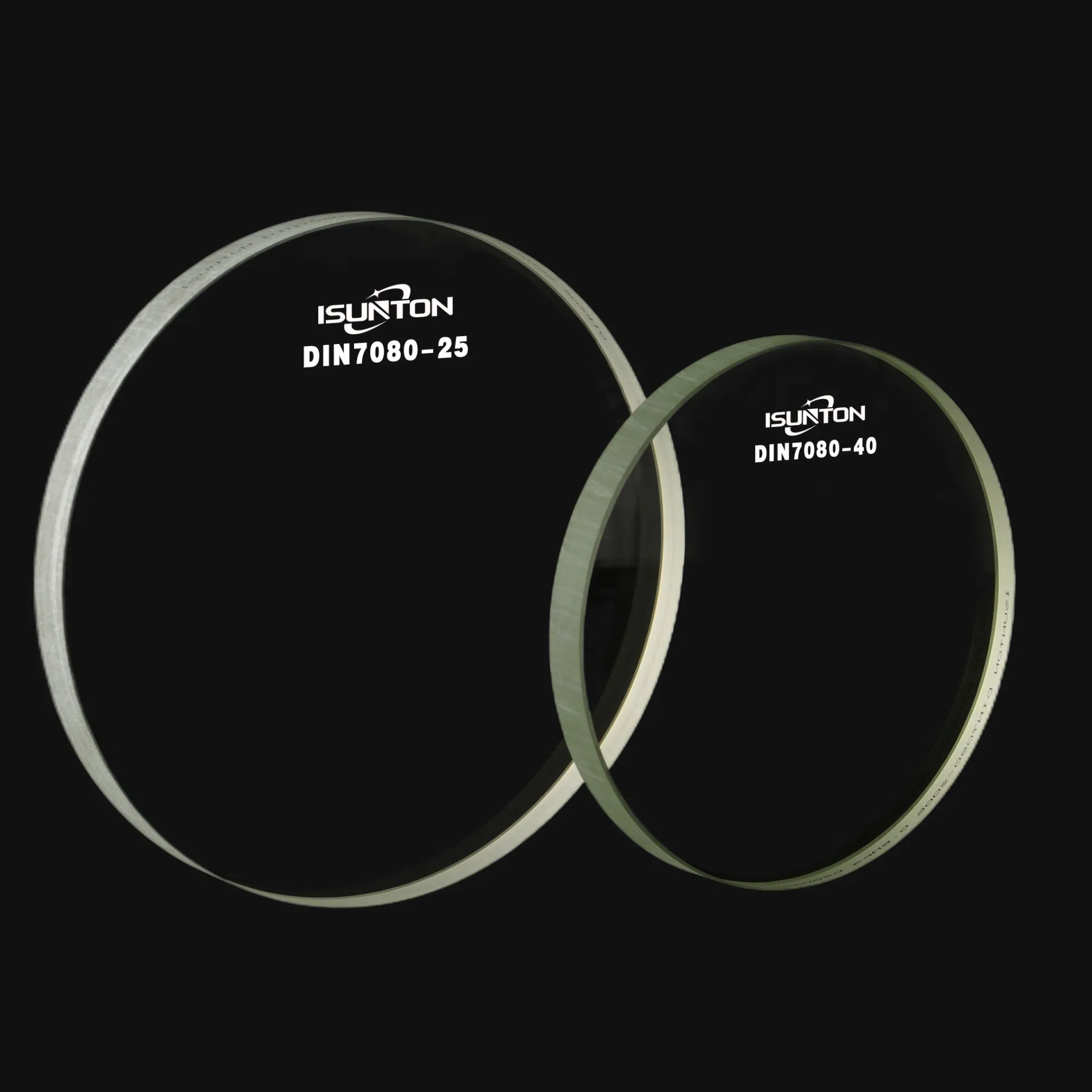

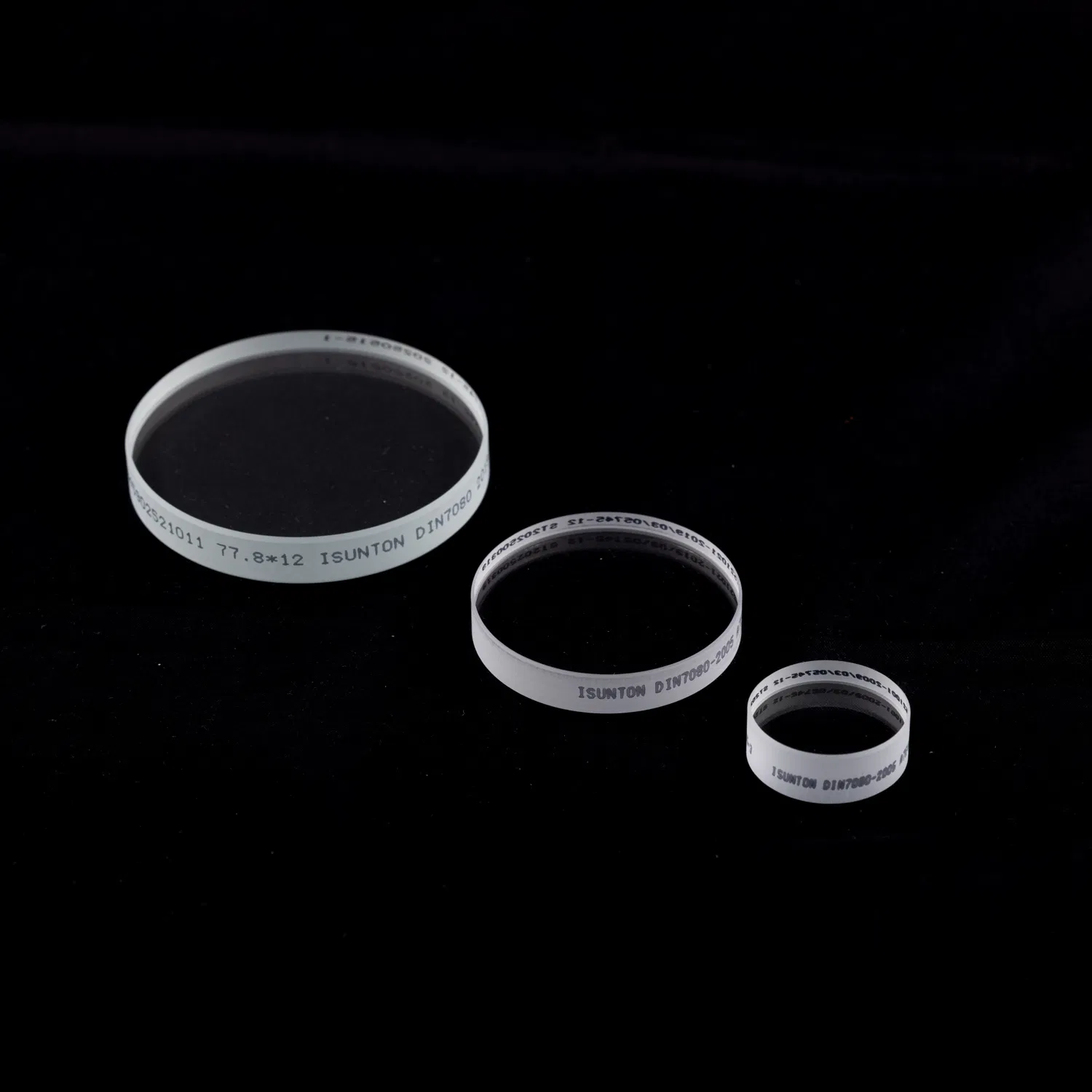

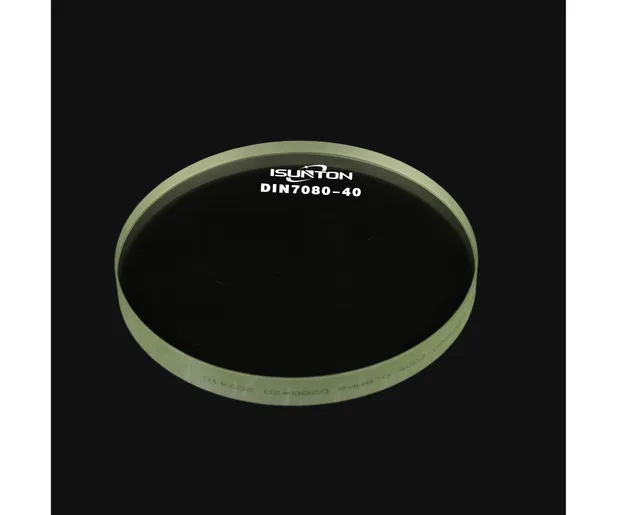

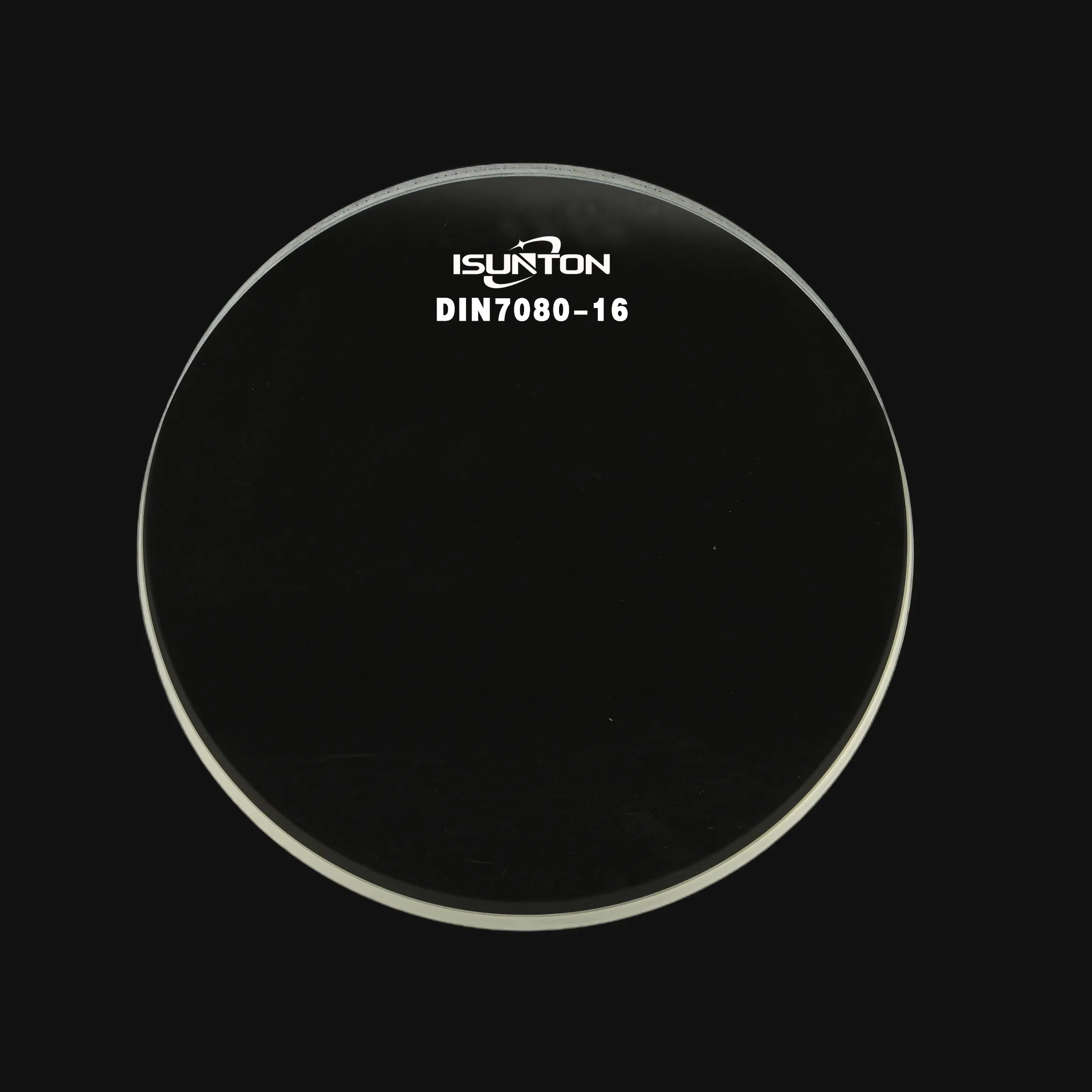

DIN7080 Tempered Borosilicate Sight Glass is designed for high-temperature and high-pressure industrial environments. In scenarios such as chemical reaction vessels, petroleum pipelines, and pharmaceutical monitoring, ordinary glass often fails due to thermal expansion or structural rupture. Our industrial-grade glass solves environmental tolerance issues and observation reliability defects, reducing equipment shutdown by 30%-50%.
Other sizes can be customized according to drawings.
| d1 x s (mm) | Aperture d2 (mm) | Pressure (bar) | Dimensions (inch) | Aperture (inch) | Pressure (psi) |
|---|---|---|---|---|---|
| 45*10 | 32 | 40 | 1.772 x 0.394 | 1.26 | 580 |
| 45*12 | 32 | 50 | 1.772 x 0.472 | 1.26 | 725 |
| 50*12 | 35 | 40 | 1.969 x 0.472 | 1.378 | 580 |
| 60 x15 | 45 | 40 | 2.362 x 0.591 | 1.772 | 580 |
| 80 x20 | 65 | 40 | 3.150 x 0.787 | 2.559 | 580 |
| 100x25 | 80 | 40 | 3.937 x 0.984 | 3.15 | 580 |
Holding over 10 invention patents and more than 50 utility model patents.
