Igu Dgu Heatproof/Double Glazed Glazing/Sound Proof/Low-E Insulated Hollow Reflective Glass Curtain Wall/Window/Facades/Skylights Window and Door Glass

Basic Specifications

Model NO.

091

Type

Float Glass

Shape

Flat / Curved

Structure

Hollow / Insulated

Glass Thickness

3-19mm

Air Cavity

6mm, 8mm, 9mm, 10mm, 12mm, 16mm, 18mm, 24mm

Moh's Hardness

7

Color Options

Neutral, Light Blue, Ford Blue, Dark Blue, Ocean Blue, Gray, Green, Gold, Bronze

Applications

Door, Building, Window, Curtain Wall, Facade

Certificate

SGCC, CE, IGCC, AS/NZS4666

Production Cap.

200,000 M2 / Month

HS Code

70080000

Product Description

IGU DGU Heatproof / Double Glazed Glazing / Hollow / Insulation / Sound Proof / LOW-E Insulated Glass Unit

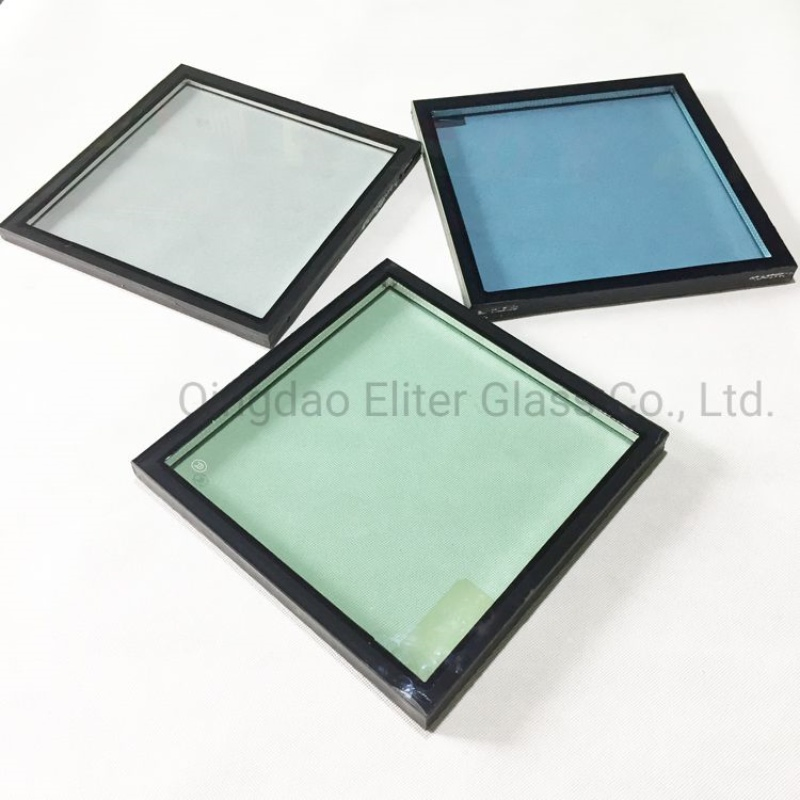

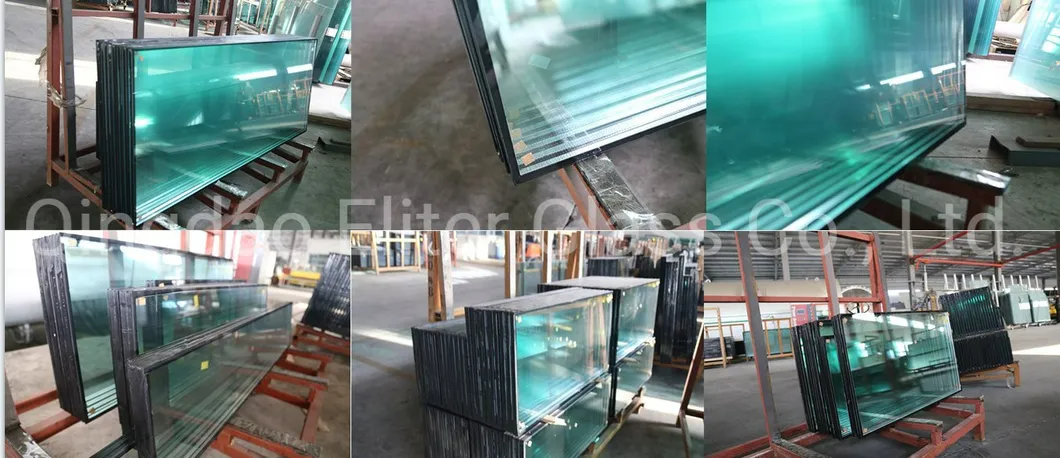

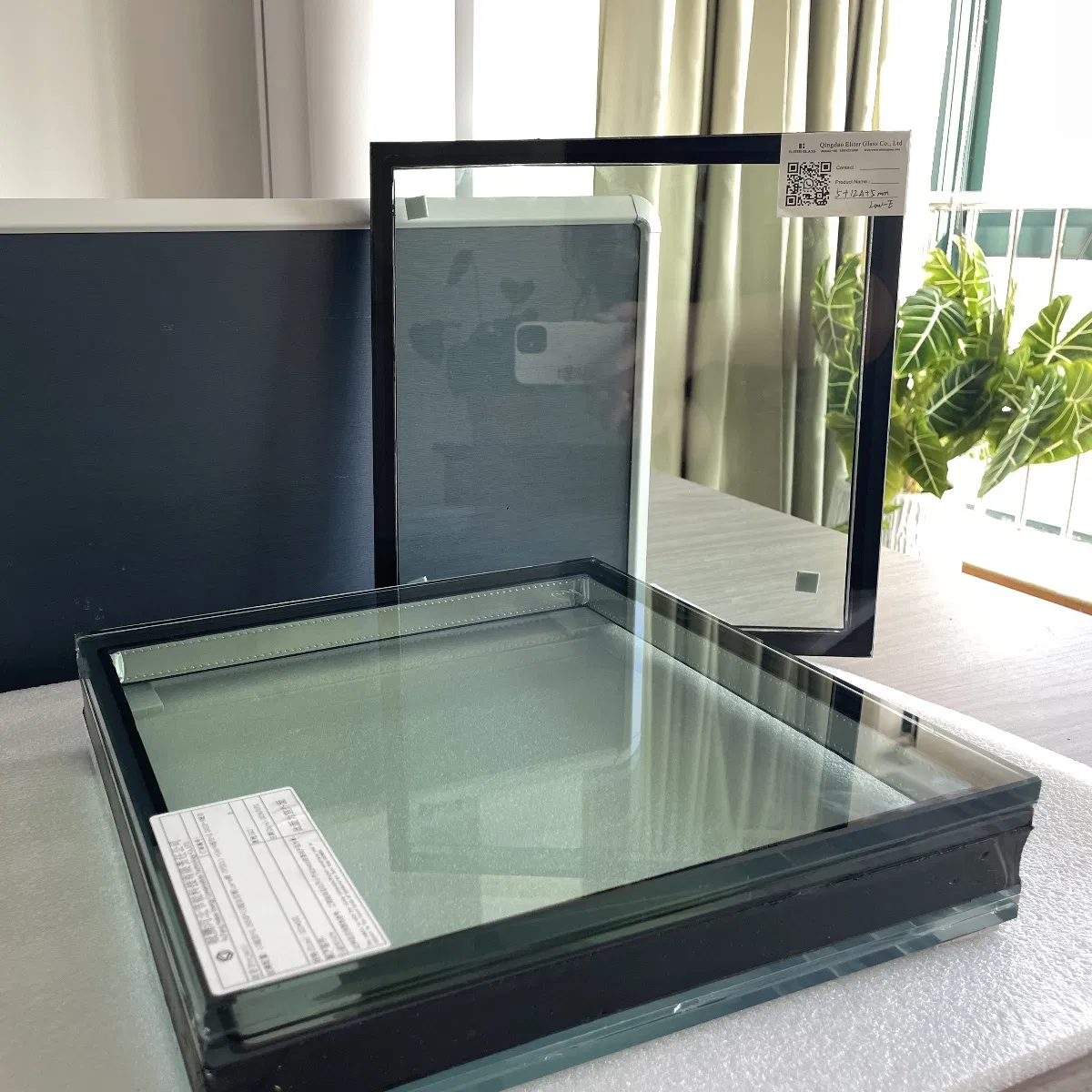

Insulating Glass (IGU), also known as double glazing, consists of two or more glass sheets separated by an aluminum or thermal break spacer and sealed to create an airtight cavity. This structure significantly enhances thermal insulation and soundproofing.

Technical Specifications

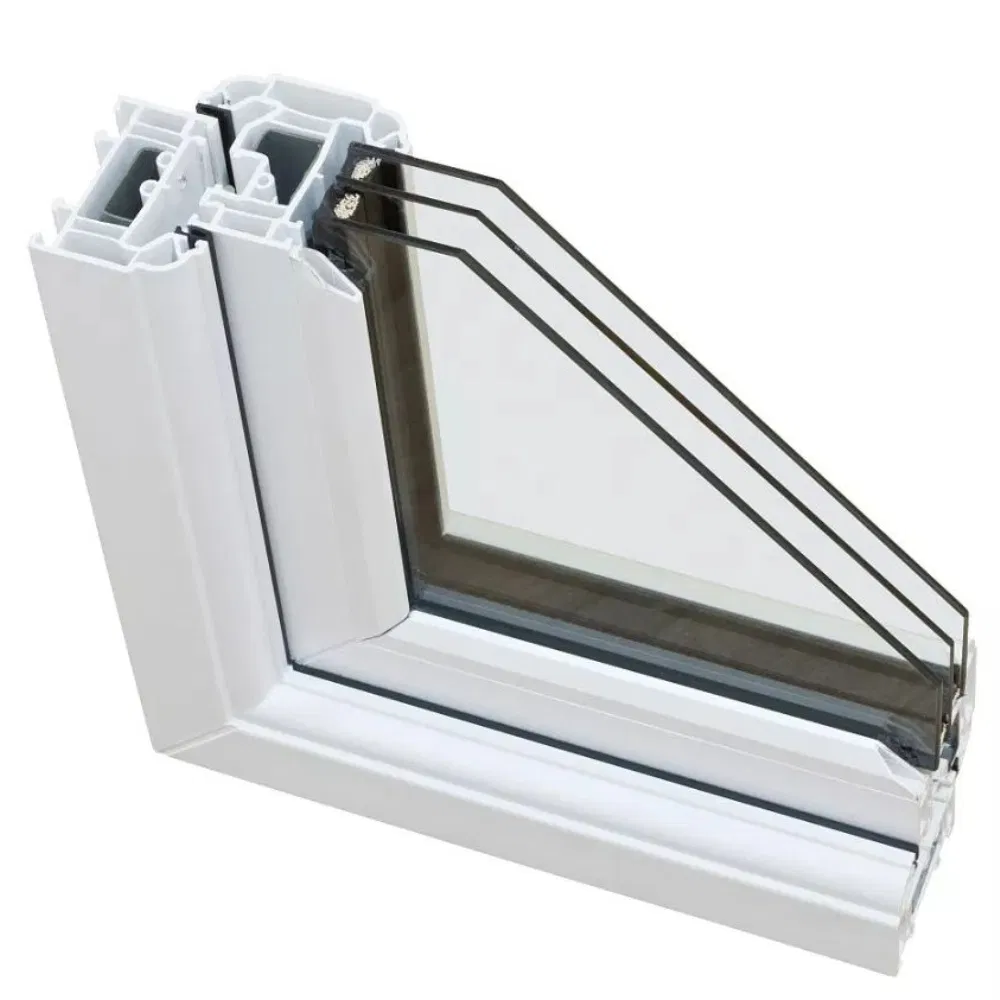

Product Type	Double/Triple glazed, Silk Screen Printed, Tempered laminated, Oversized, Curved insulated glass
Spacer Type	Aluminum, Stainless steel, Thermal break spacer	Gas Filling	Argon or Dry Air
Low-E Coating	Single Silver, Double Silver, Triple Silver options
Surface Finishing	Clear, Frosted, Sandblasted, Colors Printed
Common Config	4+4, 5+5, 6+6, 8+8, 10+10, 12+12 (mm)

Specialized Processing

◈

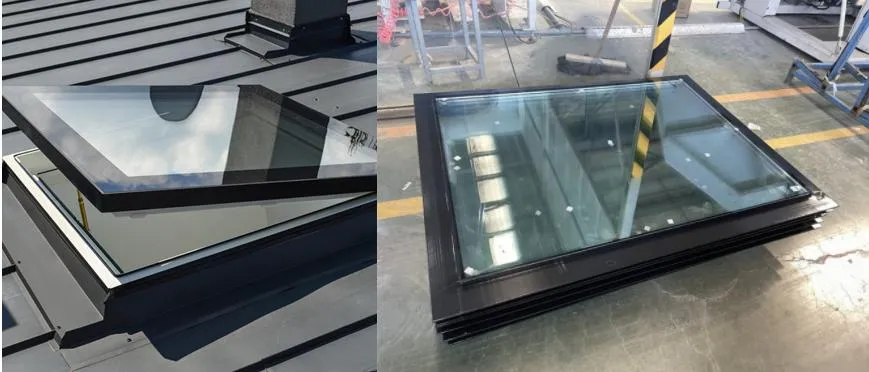

Stepped / Offset Insulating Glass: Ideal for semi-stick curtain walls or skylights. Silicon sealant ensures uniform color.

◈

Perforated IGU: Used in point-supported facades with sealed aluminum rings for safety.

◈

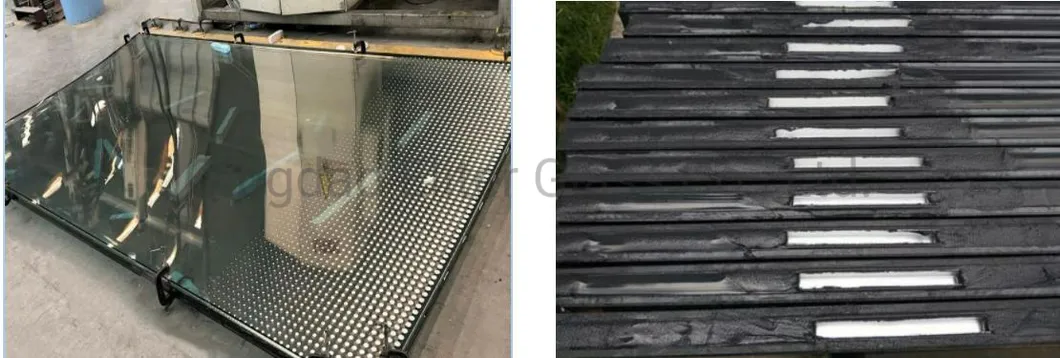

U-Channel Integration: Embedded aluminum frames for enhanced structural support.

Key Characteristics

✔ Optical Property: Light transmittance 70-80%; Reflectance 10-48%.
✔ Thermal Performance: Low U-value, significantly reduced energy consumption.
✔ Acoustical Insulation: Reduces noise by more than 30 dB.
✔ Anti-Condensation: Dew point below -65 ºC guarantees no fogging.

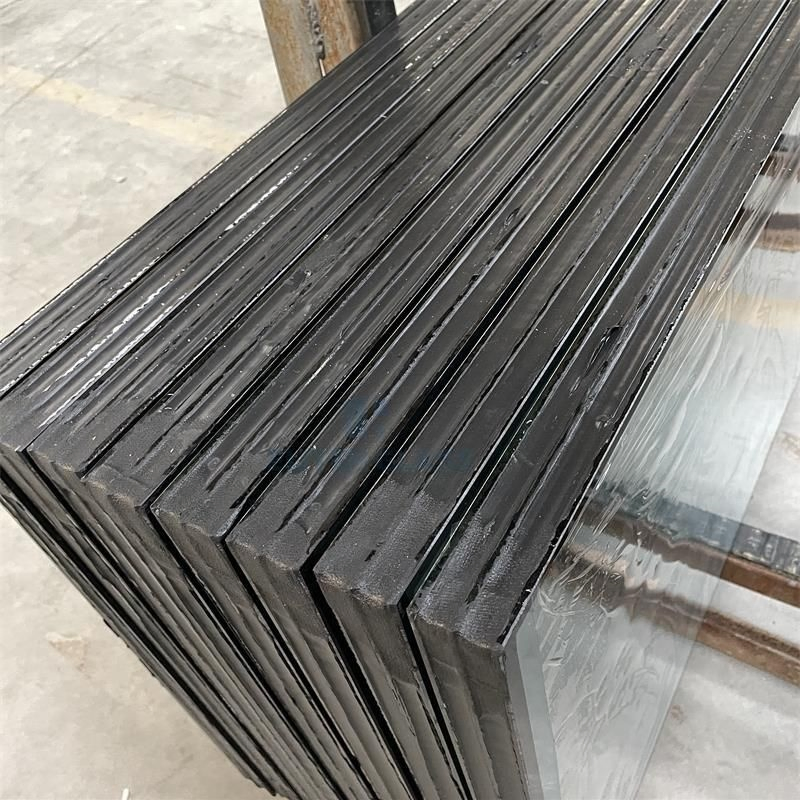

✔ Dual Sealing: High-precision automatic curving with minimal joints for long lifespan.

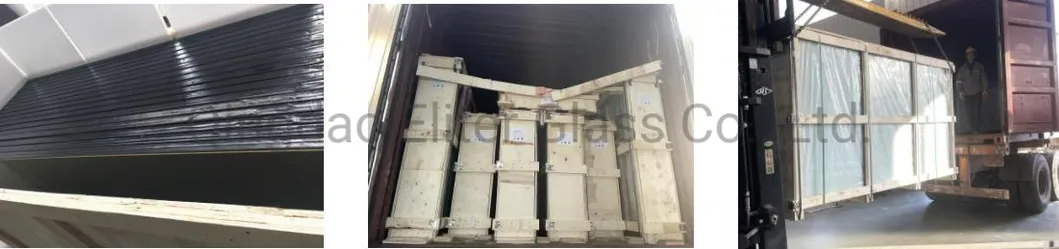

Packaging & Logistics

📦 Strong seaworthy plywood crates.

📦 Protective interlayers between glass sheets.

📦 Max weight: 1.5 - 2.0 tons per crate.

Frequently Asked Questions

1. How can I get a quotation?

Please provide the glass configuration, thickness, sizes, quantity, and specific processing requirements.

2. What is the Minimum Order Quantity (MOQ)?

There is generally no strict MOQ for processed glass; however, larger quantities offer more competitive pricing.

3. Are samples available?

Yes, samples are free. You only need to cover the shipping costs or provide a courier account.

4. What is the typical lead time?

Samples are usually ready in 1-4 weeks. Mass production orders typically take 3-4 weeks after confirmation.

5. What are your payment terms?

For orders under 5000 USD, 100% prepayment via T/T. For larger orders, 30% prepayment and 70% before shipping.

6. Which quality standards do your products meet?

Our products meet international standards including CE (Europe), SGCC/IGCC (USA), CSI (Australia), and GB11944 (China).
