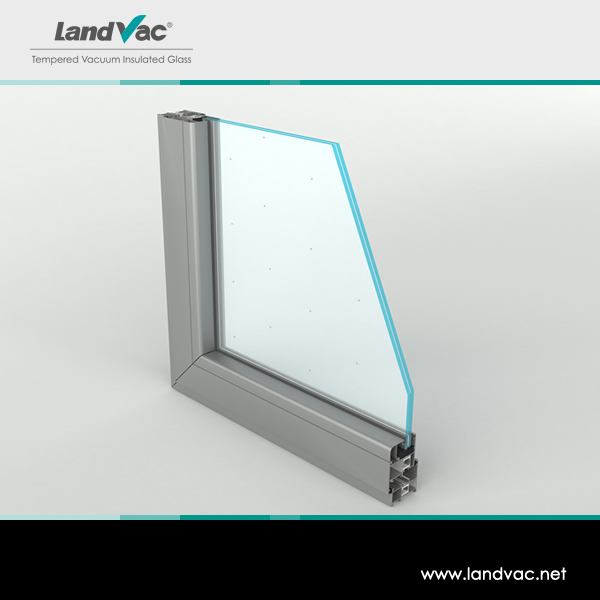

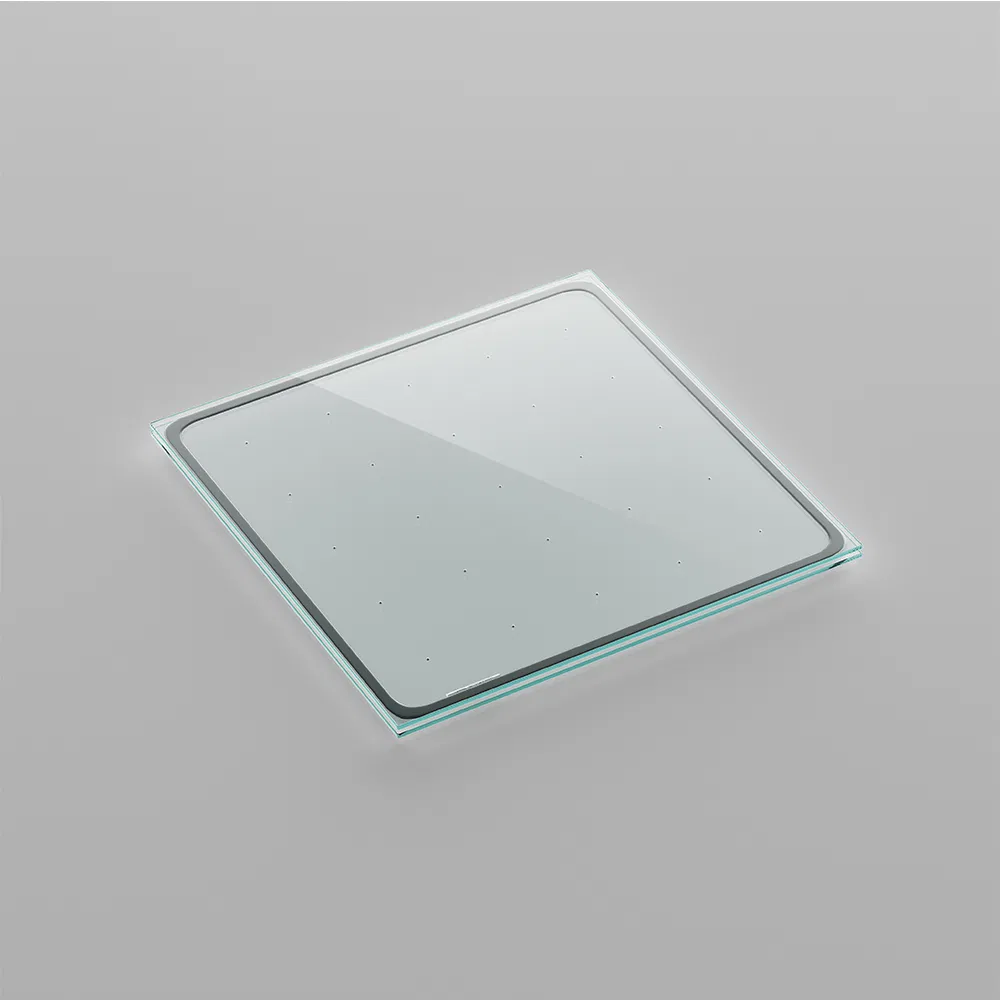

Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass Panel

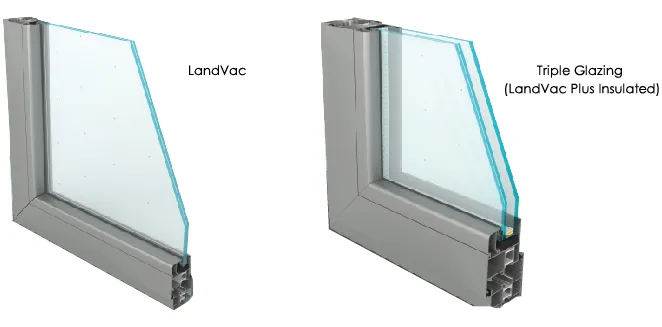

| Product Type | Structure | Thickness (mm) |
|---|---|---|
| LandVac | 4TL+0.3V+4T | 8.3 |
| Triple Glazing (Plus Insulated) | 4T+12A+4TL+0.3V+4T | 24.3 |

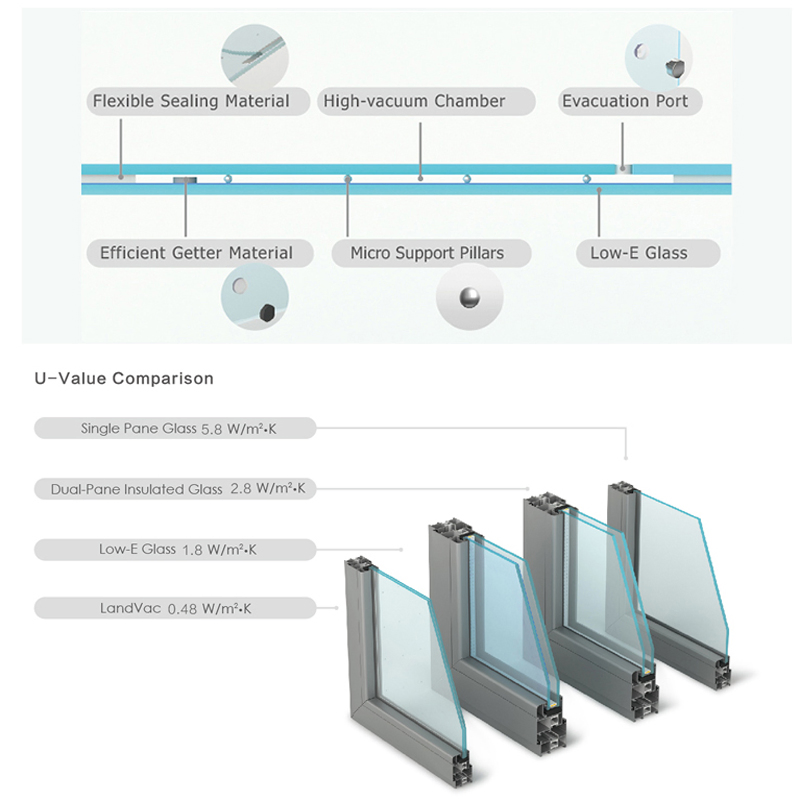

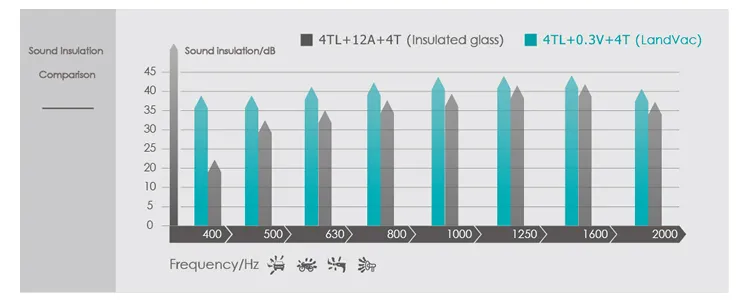

| Product Type | U-value (W/m²K) | SHGC | SC | Sound Isolation (dB) |
|---|---|---|---|---|

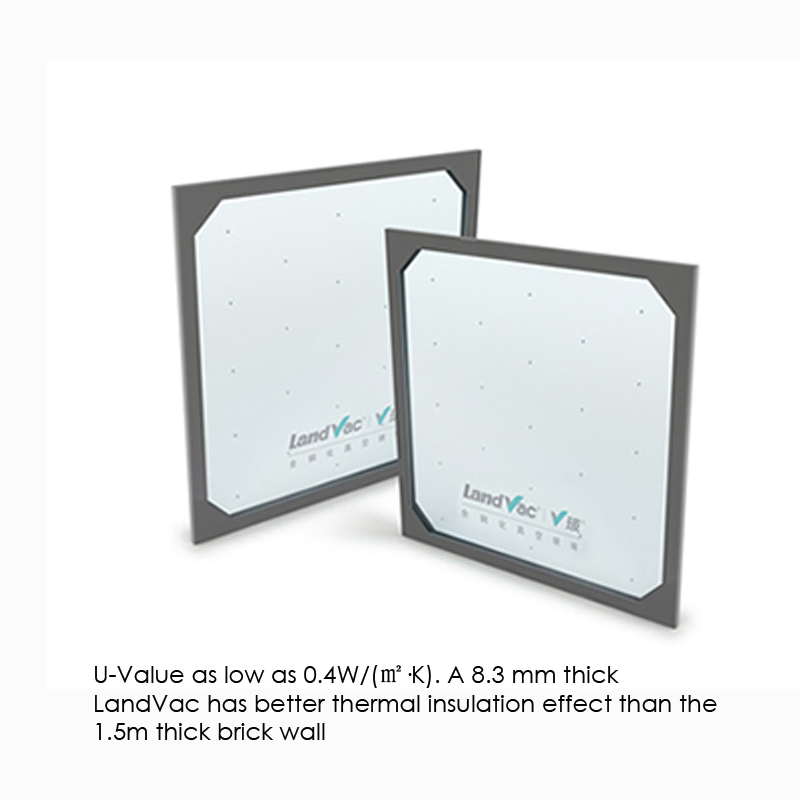

| LandVac | 0.48 | 0.49 | 0.56 | 39 |
| Triple Glazing (Plus Insulated) | 0.42 | 0.45 | 0.52 | 42 |
* T-Tempered clear glass; TL-tempered Low-E glass; V-vacuum space; A-air space. Calculations based on ASHRAE standards.

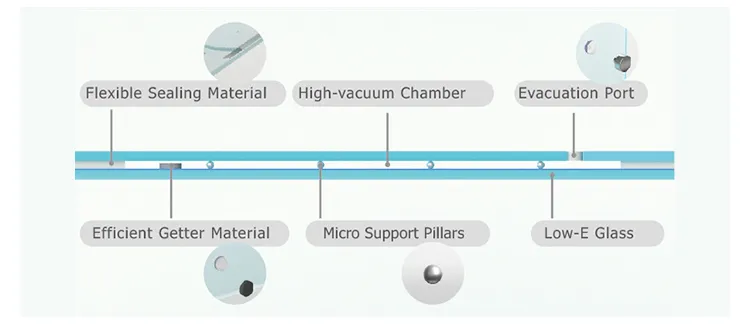

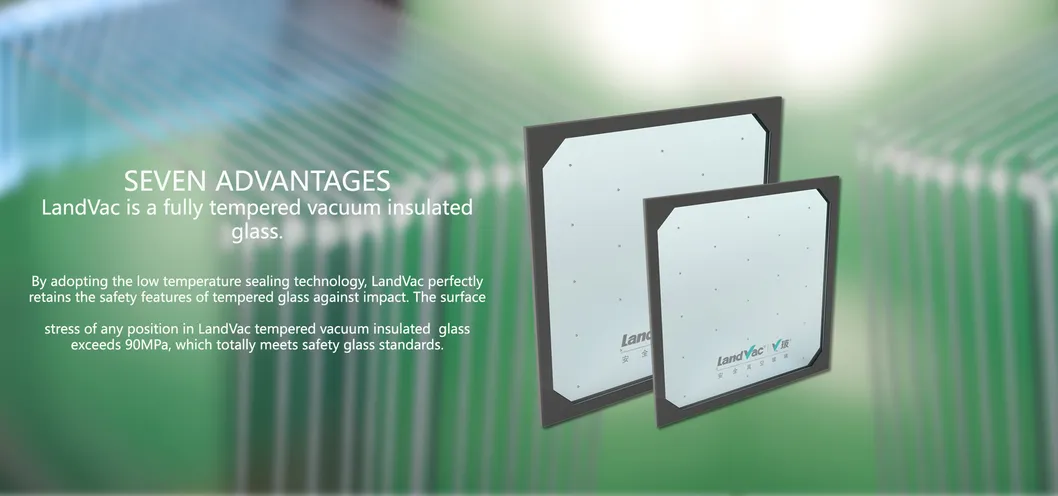

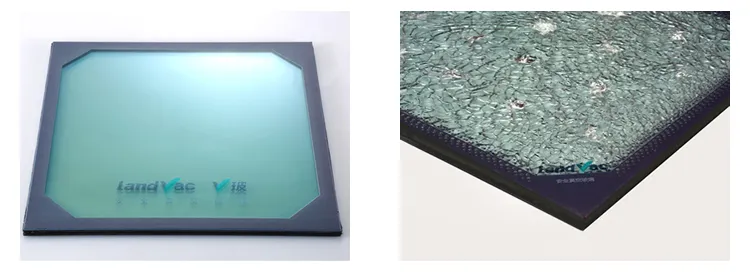

| Low Temperature Sealing | Retains safety features of tempered glass by ensuring surface stress exceeds 90MPa. |
| Flexible Edge Sealing | Adopts flexible materials to resist thermal expansion and contraction, preventing sealing failure. |
| High Vacuum Sealing | Maintains consistency of high vacuum levels in a UHV chamber for remarkable durability. |
| Flat Sealing | Sealing does not protrude, ensuring easy transportation and elegant mounting. |

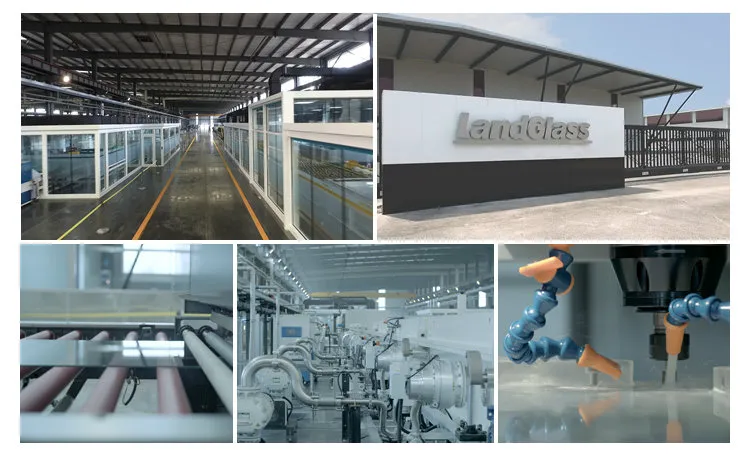

| Intelligent Automation | Continuous production line minimizes human intervention for consistent quality. |

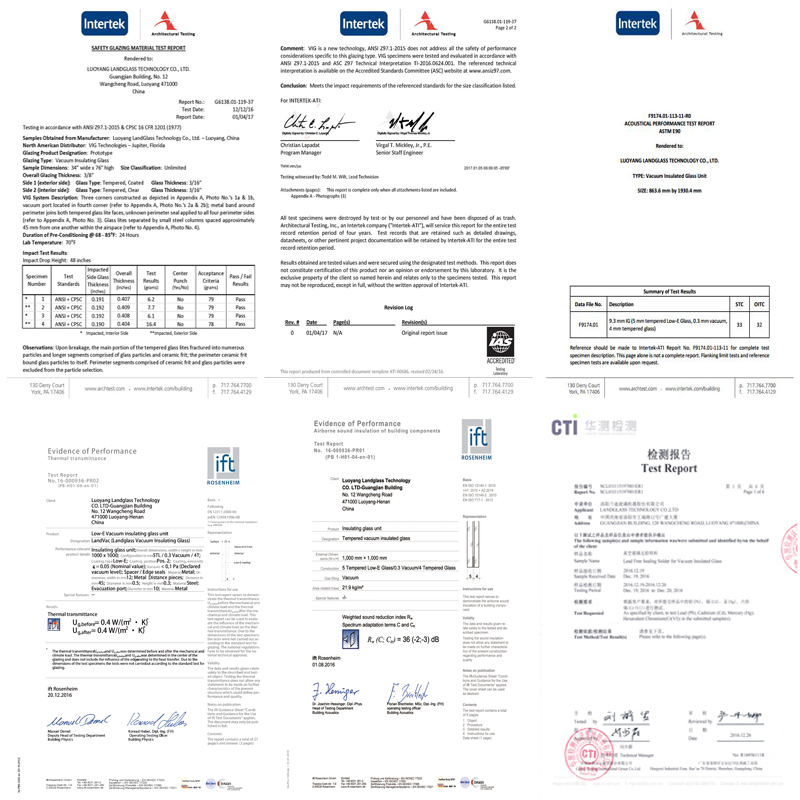

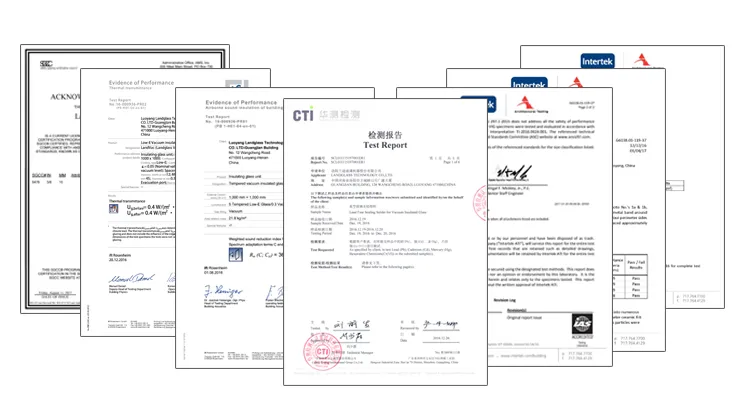

The tempered vacuum insulated glass products have been approved by authoritative third-party institutions, meeting the highest level of national thermal and sound insulation standards.
